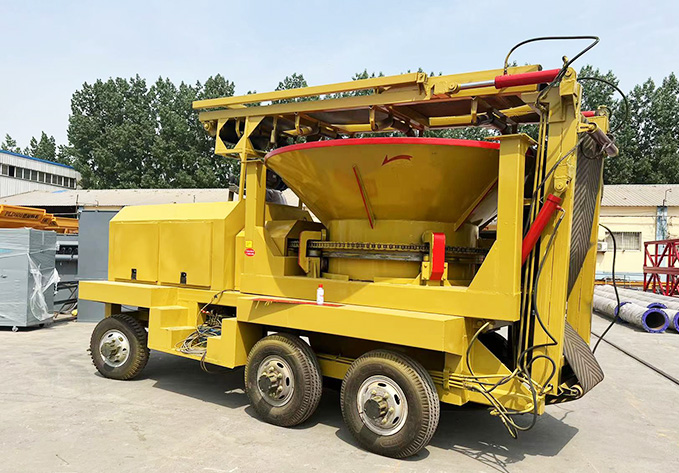

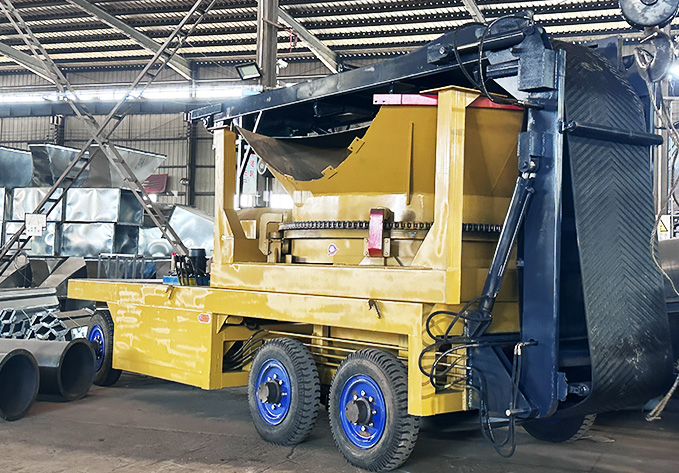

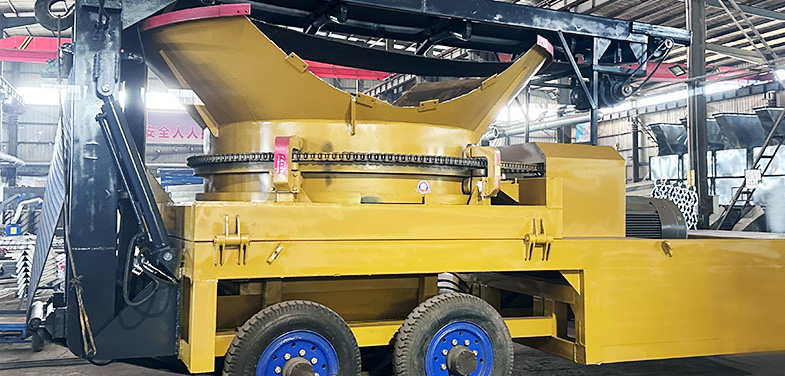

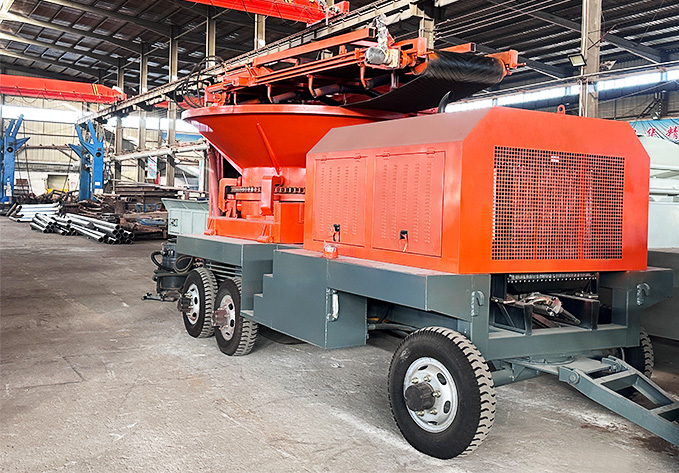

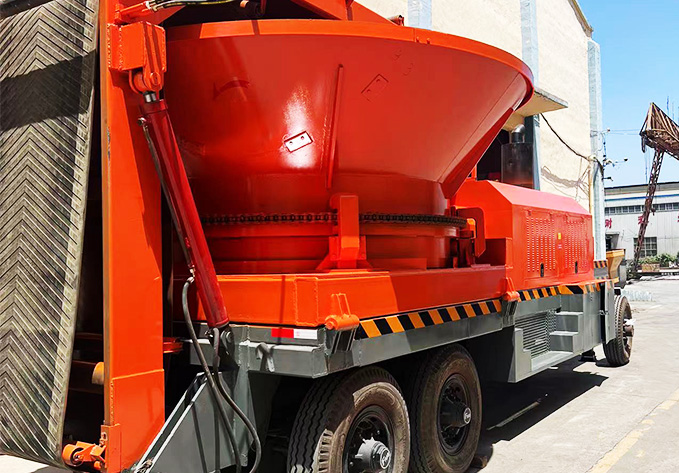

Disk wooder pier crusher is mainly composed of rotary table, crushing knife, feeding port, discharging port, motor, belt and other parts. These components work together to ensure that the equipment can perform the crushing task efficiently and stably.
Disk wooder pier crusher is mainly composed of rotary table, crushing knife, feeding port, discharging port, motor, belt and other parts. These components work together to ensure that the equipment can perform the crushing task efficiently and stably.

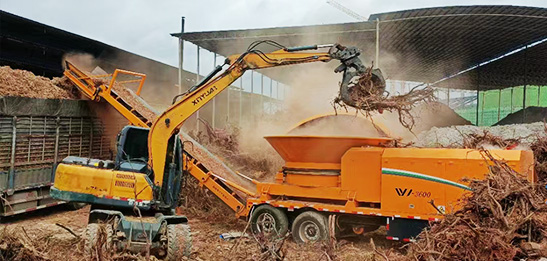

Put the roots into the feeding mouth, the motor drives the turntable to rotate at high speed through the belt, and the crushing knife on the turntable then carries on the roots, strong impact, shear and tear, and finally breaks the roots into smaller particles or fragments. According to the different cutter head, the Disk wooder pier crusher can be divided into coarse crusher and fine crusher, in order to meet the production needs of different particle size requirements.
Disk wooder pier crusher has a wide range of applications in many fields, including landscaping, forestry harvesting, urban greening maintenance and agricultural fields. In landscaping work, it can be used to deal with parks, scenic spots and other public green areas as well as the tree roots in the green belt on both sides of the road; In forestry harvesting operations, it can be used to deal with a large number of branches, leaves and other garbage; In urban greening maintenance, it can convert the waste generated by pruning and maintenance into organic fertilizer; In the field of agriculture, it can convert organic waste such as branches and leaves into organic fertilizer and improve the fertility of the soil.
The pellet fuels made by biomass pellet machine have a wide range of applications, mainly including the following aspects:
Civil heating and domestic energy: biomass particulate fuels can be used for domestic heating, hot water supply and other areas of domestic energy, replacing traditional coal and gas and other energy.
Industrial boiler: biomass particulate fuel can be used as the main fuel of industrial boiler, replace traditional energy such as coal, reduce atmospheric emissions and pollution. Biomass power plant: biomass particulate fuel can be used in the power generation process of biomass power plant, to achieve large-scale utilization of biomass energy.
|
Model |
XF-600 |
XF-800 |
XF-1000 |
|
Rotation diameter of the cutterhead(mm) |
600 |
800 |
1000 |
|
Number of crushing blades(piece) |
24 |
32 |
36 |
|
Number of cutting blades(piece) |
4 |
4 |
4 |
|
Blade length(mm) |
200 |
250 |
340 |
|
Diameter of flat feed inlet(mm) |
400×240 |
500×300 |
600×350 |
|
Spindle speed(r/m) |
1400 |
1200 |
1000 |
|
Equipped with power(kw) |
15-18.5 |
22-30 |
37-45 |
|
Production(kg/h) |
2000-3000 |
3500-4000 |
5000-6000 |
|
Weight(kg) |
800 |
1400 |
2200 |
